第8章 在理解这种科技系统有用的类比

能量海 2022-05-08 第8章 在理解这种科技系统有用的类比 纽曼的能源机 能量海资料
本帖最后由 火凤凰 于 2014-7-4 05:53 编辑

Chapter 8 ANALOGIES USEFUL IN UNDERSTANDINGTHE TECHNICAL SYSTEM

"A new scientific truth does nottriumph by convincing its opponents and making them see the light, but ratherbecause its opponents eventually die, and a new generation grows up that isfamiliar with it."
- MaxPlanck
一个新的科技真理不能通过让对手信服或者使对手看到光明来获胜,只有它的对手全部消失了,新的一代长大才能熟悉它用它。

I will now discussin greater detail "how " and "why" my conduct ing-coil-unitoperates.

我将讨论更详细的细节“如何”和“为什么”我的线圈装置工作。

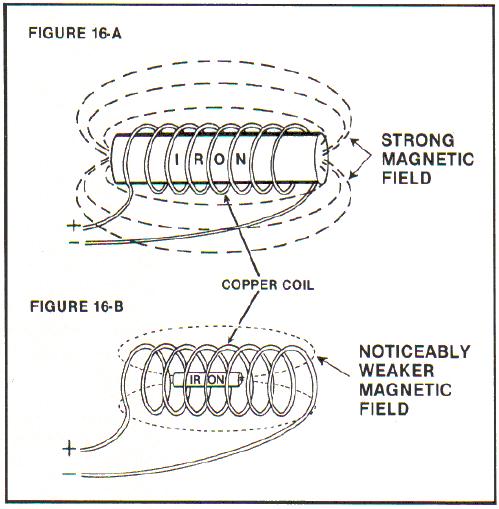

16. Let us studyanother analogy (see 16-A and 16-B below):

16.让我们学习另一种类比:


If 1 amp of currentgoes into Figure 16-A , a noticeably larger magnetic field occurs than inFigure 16-B (for the same current input).

如果1安电流流入图16-A,一个可见的大磁场区域产生并强于图16-B(同样电流输入)。

QUESTION:  Why the large difference in the strength of themagnetic field?

问题:为什么在磁场区域的强度有这么大的区别?

ANSWER: Simple. Wehave already demonstrated that the iron becomes magnetic due to atom alignment.Therefore, via the small electrical input acting as a catalyst, we have simplycaused more atoms to align in the larger mass of iron in Figure 16-A above thanin the smaller mass of iron in Figure 16-B.

回答:简单的,我们已经证明铁由于原子排列带有磁性。因此,用小输入电流作催化剂,我们很容易引起图16-A中更大质量的铁比图16-B小质量的铁更多原子排列。
注:这里其实不是电流作为催化剂,而是线圈的磁场作为催化剂。

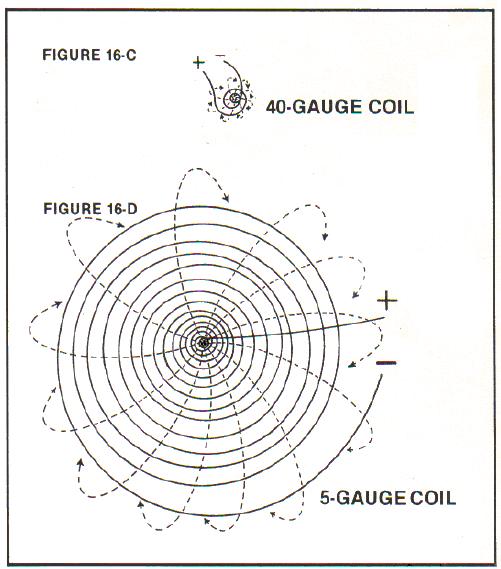

If 1 amp of currentgoes into Figure 16-C, a noticeably smaller and weaker magnetic field occursthan in Figure 16-D.

如果1安的电流输入图16-C,一个明显的比图16-D更弱小的磁场产生。
QUESTION :  Why the difference?
问题:产生不同的原因?

ANSWER:  Simple . As we have already proven, we havemore copper atoms to align in coil 16-D than in coil 16-C.

回答:简单说。如我们已经证明的,线圈16-D比线圈16-C有更多的铜原子要排列。

E.  All of the facts presented in Sections 1-16clearly prove that the current (consisting of gyroscopic particles in motion) putinto a conductor simply acts as a catalyst in aligning the atoms of theconductor itself. This same catalytic effect is observed if a conductor is wrappedaround iron and the current runs through the conductor. In other words, thecurrent simply acts as a "pure catalyst!" The current input triggersthe atom alignment which resulcs in energy (gyroscopic particles) beingreleased from the atoms aligned. However , the electrical current input doesnot participate in the magnetic field released.

E.1-16中展示的所有事实清楚的证明电流(由运动的陀螺子组成)输入到导体中只简单作为催化剂来排列导体本身的原子。同样的催化效果被观察到在绕铁导线中有电流穿过导体时。也就是说,电流只简单作为“单纯的催化剂”!电流的输入引发原子排列,这导致能量(陀螺子)从排列的原子释放。然而,输入的电流没有参与磁场的释放。
注:这里其实有一个问题,导线周围的磁场是与流过导线的电流成正比的经验公式

   如果这个公式不对,或者这个只适合原子没有被完全排列时。那么说明一个问题:

   没完全排列时,磁场的释放与输入电流的大小正相关,也就是说输入电流中的陀螺子的数量也影响着触发的磁场大小。电流太小时就只能激发很少的部分,更或者说陀螺子的路径越窄则有更多的机会激发陀螺子。

   猜想导线的粗细与激发磁场的大小也有关系,所以类似作者的纯粹只靠增加导线的重量或许还有捷径。

F.    There is another important mechanical effectof the gyroscopic particles comprising a magnetic field, electric field , andall matter, which I refer to as a "Hydraulic Effect." (See Figun:16-F I.)

组成磁场、电场、所有物质的陀螺子另一个重要的力学效应,我参考一种“水压效应”。

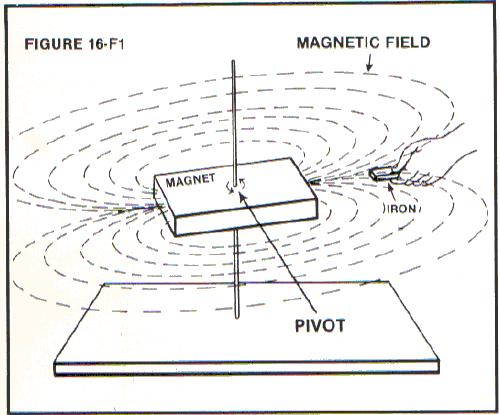

lf one places apiece of Iron in a magnetic field and the source (magnet) is fixed to a pivot(see Figure 16-F1 above), then, lf the piece of iron is moved, the magnet willalso attempt ro move. It is mechanically obvious that there is a magnetic"coupling effect " generated by flowing "streams or shells"of gyroscopic particles comprising the magnetic field and originating from theatoms of the magnet. I originally asked myself: "How else could there bean action-reaction effect?" Any motion whatsoever on the part of the pieceof iron will cause an attempted motion of the magnet itself. This action is thesame type of effect as found in a hydrnulic system. (Sec Figure 16 f2.)

如果放一块铁片到一个磁场中,并且磁铁固定在一个可旋转的轴上(看图16-F1),之后,如果移动这块铁片,磁铁也有移动的趋势。这是明显的力学行为,由陀螺子形成的“流或壳”产生的磁“耦合效应”,陀螺子来自磁铁原子并组成磁场。我问自己:“这种相互作用是怎么产生的?”铁片的任何运动都会引起磁铁自身试图运动。这种反应和水利学系统和效果是同一类型。

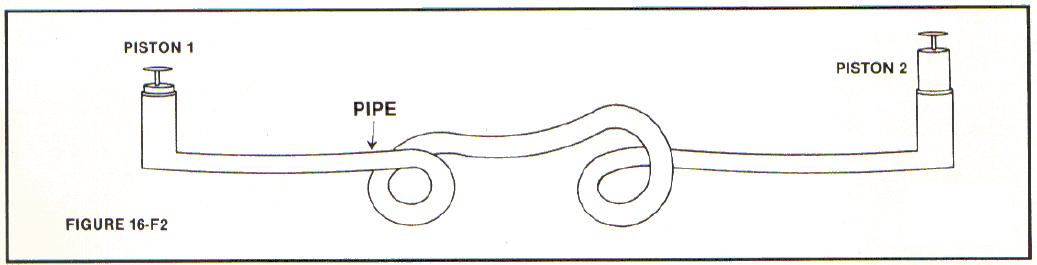

If the pipe isfilled wih fluid and the piston is moved, then piston 2 will also move. lf thepipe is filled with a gas and piston 1 is moved, then piston 2 will alsoattempt to move. However,enough pressure can be imposed on piston 2, causingthe gas molecules to compress into a smaller area within the pipe. The sameeffect can befound  in magnetics.

如果管道充满液体,活塞1运动会带动活塞2同样运动。如果管道充满气体并且活塞1在运动,之后活塞2将试图运动。然而,足够的压力加到活塞2上,会引起气体分子压缩到管道中一个小的区域。同样的效果可以在磁场中发现。

F. The same type ofhydraulic effect can be observed in the electric current (gyroscopic particles)coming from a battery or generator and flowing into a conductor to align theatoms within the conductor. The atoms of the conductor are aligned due to thepressure of the voltage from the battery or generator. The current (gyroscopicparticles) that is derived from the atoms of the material within the battery orthe atoms within the conductor and magnet of the generator is the energy whichcomprises the atoms of the material from which the current (gyroscopicparticles) originates. The gyroscopic particles actually create a hydrauliceffect back to the atoms from which the gyroscopic particles come. This actionis mechanically similar to any hydraulic pumping system.

F. 同样的水压效果也可以在电流(陀螺子)中观察到,电流来自电池或发电机,注入一个导体导致导体原子排列。导体的原子重排归因于电池或发电机的电压的压力。源自于电池原料中的原子或发电机导体和磁铁内的原子电流(陀螺子)是激发导体内原子的陀螺子的能量。陀螺子实际上创建了一种类似水压效果在原子内的陀螺粒子间。这种行为类似于任何流体输送系统。

"The currentinput triggers the atom alignment which results in energy (gyroscopic particles) released from the atoms aligned. However, the electrical current inputdoes not participate in the magnetic field released."

“电流的输入会引起原子的排列,被排列的原子会释放能量(陀螺子)。然而,输入的电流不参与磁场的释。”

H.    There is a most important distinction,however, between the power source of conventional hydraulic systems and thatwhich I have discovered and developed. The current (gyroscopic particles) whichcomes from a battery or generator is the energy which comprises the atoms of thematerials from which current (gyroscopic particles) comes. This action isliterally the mechanical essence of Einstein's Equation E = MC2.

H. 然而,在传统的水压系统和我发现的系统之间能量来源有一个最重要的区别。来自电池或发电机的电流(陀螺子)来自组成材料原子的能量。字面上意义是E = MC2等式的力学本质。

Therefore, a batteryconnected to the proper output system will be destroyed in accordance with E =MC2! I am not referring to the present, inefficient chemicalreaction within a battery, since present teachings state that all energy producingdevices (which use current) operate via the current input only. This is nottrue!

因此,连接到合适输出系统的电池将以E = MC2的方式消耗自己的能量!我不是指当前、无效率的电池内的化学反应,当前学说所有的能量产生装置(使用电流)的运转只由输入电流驱动。这是不正确的!

Such presentteachings have resulted in designs for inefficient battery devices which are deliberntelyconstructed to use relatively high current. I teach the opposite. One shouldbuild devices to use as little current as possible and practical in order torestrict that current from completing the circuit and returning to the batteryor generator.

这样的当前学说导致低率的电池装置设计,故意构建用相对很高的电流方式。我教的正和这相反。我们应该用尽可能小的电流构建设备,并且限制电流完成电路环路或者返回到电池或发电机。
注:意思是不让电流完成一个回路,如电子不从电池负极到正极,这样产生的能量是消耗的物质,按E = MC2产生。

EXAMPLE: Let'sexamine a typical battery - an electrochemical cell. These devices operateaccording to Faraday's Laws. Faradav' s First Law states that the quantity ofelectricity that passes through a solution is proportional to the quantity ofsubstance decomposed. You will note that this action is solely dependent uponthe current (gyroscopic particles) completing the circuit. If the current(gyroscopic particles) does not complete the circuit, there will be no quantityof substance decomposed . (See Figures 16-H1 and 16 -H2.)

例如:让我们看一种经典电池-电化电池。这些设备遵守法拉第定律运行。法拉第第一定律: 电解时,在电极上析出或溶解悼的物质的重量,与通过电极的电量成正比。你将注意到这种行为仅仅完成电路循环的电流(陀螺子)相关。如果电流(陀螺子)不有完成电路循环,将不会有等比的物质析出或溶解。

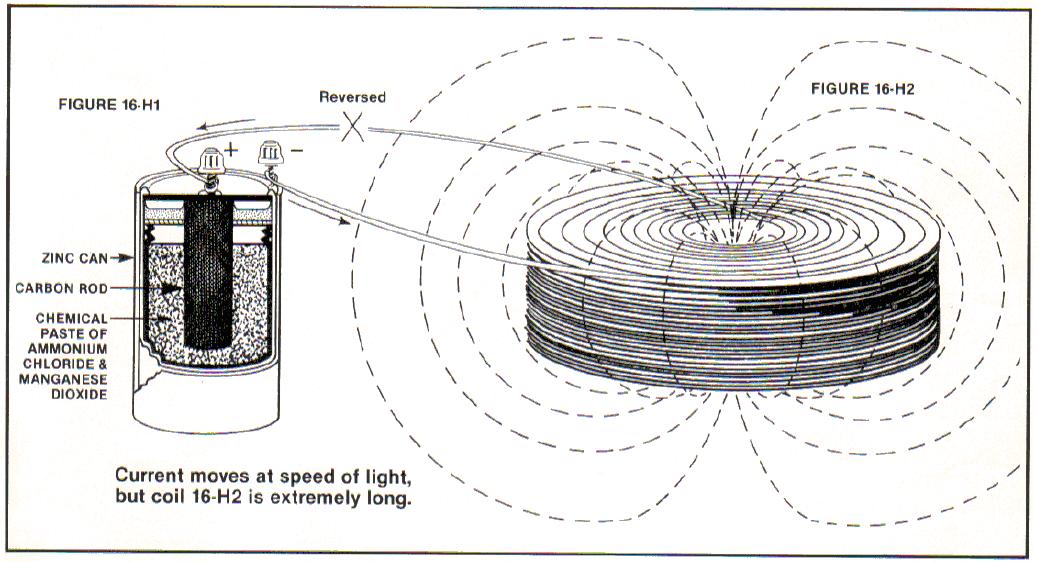

Re-examine the coilin Figure 15-B and then compare it to that in 16-H1 and 16-H2 above. Envisionthat if coil 16-H2 is composed of 5-gauge copper wire with such a length thatits resistance is 1,000,000 ohms and the battery voltage of 16-H1 is 1000volts, then only 1 milliamp of current could flow through coil 16-H2 andcomplete the circuit to return to battery 16-H1. It is obvious that the energywithin the magnetic field of coil 16-H2 would be tremendous, and, if thedirection of the current was reversed by a commutator (or similar mechanism) atposition (X) above,before the current of 1 M.A. passed through the coil, thenno decomposition of the battery by chemical means would occur. However, thehydraulic effect of the 1000 volts from battery 16-H1 would have alreadyaffected (catalytic effect) and aligned many atoms within coil 16-H2. Suchalignment would generate a tremendous magnetic field (gyroscopic particles).When the current was reversed within coil 16-H2 by the pressure of 1000 voltsfrom battery 16-H1,the induction effect would have far greater power than thatwhich originally came from battery 16-H1 on a chemical basis only. If you, thereader,have now mastered what I have taught, you will quickly recognize thatthe action- reaction effect within coil 16-H2 and the hydraulic effect ofbattery 16-H1 all operate in accordance with E = MC2.

再次检查图15-B里的线圈并和上面16-H116-H2里的对比。想像如果16-H25-gauge有铜线组成,有1,000,000姆的电阻16-H1电池电压是1000伏,那么只有1毫安的电流能流过线圈16-H2完成电路循环返回到电池16-H1。很明显,线圈16-H2中的磁场能量将是极大的,如果在1毫安电流通过线圈前电流被换向器(或类似机械装置)在位置(X)反向,那么电池中将没有化学反应发生。然而,16-H1电池1000伏的水压效果已经影响(催化剂效果)并排列了16-H2线圈中的许多原子。这样的排列将产生一个极大的磁场区域(陀螺子)。当电流在16-H2线圈被反向,通过电池16-H11000伏电压,自感的效果将产生一个比来自只以化学为基础的电池16-H1更大的能量。如果你,读者,现在已经精通我所教授的,你将可以很快的认识到线圈16-H2和电池16-H1的水压效果的相互作用都遵守E = MC2的方式运行。
"One should build devices to use aslittle current as possible and practical ...''
应当建构使用尽可能小的电流的设备

In effect , thecurrent (consisting of flowing, gyroscopic particles) coming from the atoms ofcoil 16-H2 and battery 16-H1 are the mechanical essence of E=MC2and, consequently, the mass of the entire system will be reduced via E =MC2 asenergy is removed from the system. However , due to the high conversionefficiency within the process, it would actually require an extremely longperiod of time - measured in years - to significantly deplete the mass of thematerials involved in the system.

实际上,电流(由流动的陀螺子组成)来自于线圈16-H2和电池16-H1中的都是E=MC2的力学本质,因此,整个系统的质量将遵守E=MC2的方式减少并转换为能量。然而,由于这个过程转换效率如此之高,耗尽系统中的物质需要极长的时间(以年计),才能明显的测量出系统中损耗的质量。

It should be obviousto you that the electric current (gyroscopic particles) which emanates from theelements of battery 16-H1 is not depleted in coil 16-H2. If permitted, not onlywould the battery input current align the atoms of coil 16-H2, but once thecurrent returns to the battery, such current would,according to Faraday's FirstLaw, chemically decompose large quantities of matter compared to the minutesize of the current (in the form of gyroscopic particles) which activates theundesirable chemical reaction.

对你来说很明显,电池16-H1发出的电流(陀螺子)没有在线圈16-H2里消耗。如果允许通过线圈,电池的输入电流不仅仅排列线圈16-H2的原子,而且一旦电流返回电池,那样的电流将遵守法拉第第一定律,化学析出和引起不期望的化学反应的电流(陀螺子的一种形式)成比例的大量物质。

These gyroscopicparticles obey the First Law of Thermodynamics precisely: it appears they cannot be destroyed and it appears they possess amotion of infinite duration.

这些陀螺子精确的服从热力学第一定律(注:能量守恒和转换定律):他们似乎不能被摧毁,他们似乎拥有无限的时间运动。

17. You, the reader,must now obtain the proper perspective within your mind. (See Figures 17-A and17-B.)

17.你,读者,在你的思想中现在必须形成正确的观点。(看图17-A 17-B.

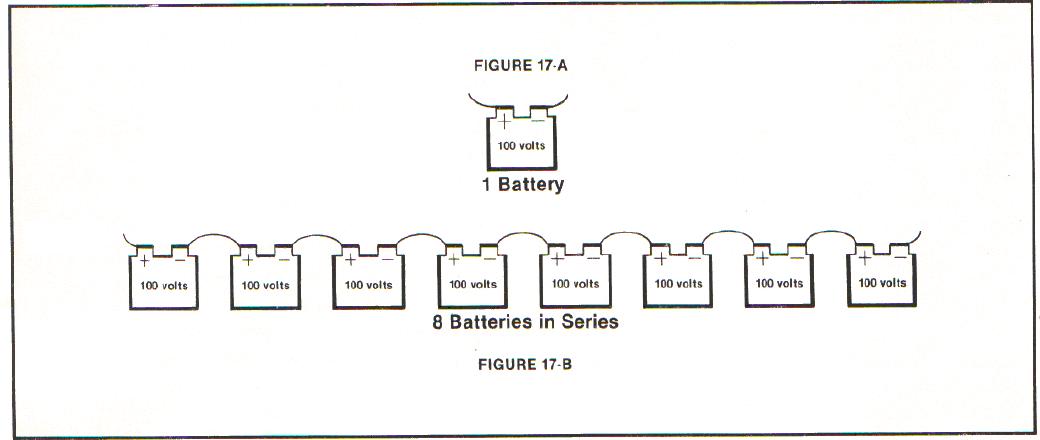

What distinction doyou instantly detect between Figures 17-A and 17-B? You should recognize thatone obtains greater energy from 17-B than from 17-A. You should recognize thisfact on a chemical basis. However, you should also see that this distinctionbetween Figures I 7-A and 17-B can also be visualized according to E = MC2 ifproperly understood and utilized .

你马上观察到图17-A 17-B有什么不同?你应该认识到我们可以从17-B获取比17-A更多的能量。你应该认识到这实际是化学反应基础事实。然而,你同样应该看到图17-A 17-B的区别如果正确的理解和应用,也能按照E = MC2构想

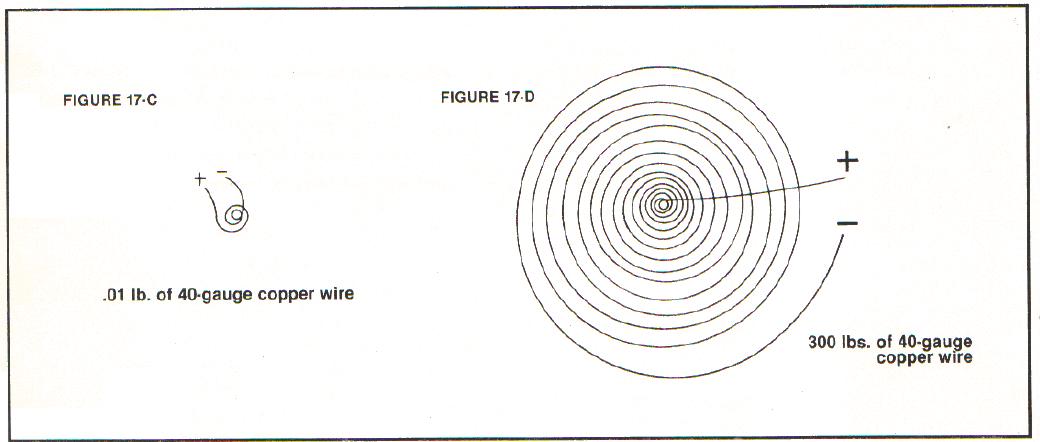

Now examine Figures17-C and 17-D:

现在比较图17-C 和 17-D:


What difference doyou recognize between Figures 17-C and 17-D? You should immediately recognizethat there are 30,000 times more atoms in Figure 17-D than in 17-C. And yousbould also recognize that these atoms are – in effect -extremely smallbatteries (see Figures 17-A and 17-B above), except that there is no chemicalreaction on an electrolytic basis. Rather, what occurs is action according to E= MC2 via the efficient conversion of magnetic mass (gyroscopic particlestraveling throughout the space surrounding aligned atoms - also referred to as"magnetic energy") to electrical energy (gyroscopic parciclestraveling through a conductor)*. If the technical system is properly utilized,one should not be surprised that an energy output can be achieved which is inexcess of the external energy input. Consequently, one should instantly recognizethat one can obtain greater energy from coil 17-D than from coil 17-C.
你认为图17-C 和 17-D有什么不同?你应该马上认识到图17-D相比17-C有着 30000倍的原子。你同样应该认识到这样原子是-实际上-极小的电池(看图17-A 和17-B),除了这里没有电解的化学反应。相反,发生的是遵守E = MC2活动,通过转换磁场物质(穿梭在没有排列的原子周围空间运动的陀螺子-也可以说“磁能量”)为电能(穿过导体的陀螺子)*。如果这种科技系统被恰当的应用,我们将不会再惊叹输出的能量多于输入的能量。因此,我们应该马上认识到线圈17-D比线圈17-C可能获取更多的能量。
*Note: referring toenergy as "electrical" or "magnetic" without understandingthe essential nature of such energy can be conceptually misleading.There existsonly one (mechanical) concept of eneryg :gyroscopic particles in motion. This singleconcept of energy can be observationally manifested in different forms: when travelingthrough a comluctor (metal wire) , the gyroscopic particles are commonly called"electrical" energy. When traveling throughout the space surroundingaligned atoms,the same gyroscopic particles are perceived as"magnetic" eneryg.
*注意:关于能量是“电能”或“磁能”,没有对这种能量基础理论的理解会产生概念上的错误。这里只有一个能量的(力学)概念:运动的陀螺子。这个唯一的能量概念能明显的展现为不同的形式:当穿过一个导线(金属线),陀螺子是通常叫的“电”能。当穿过排列原子的周围空间,同样的陀螺子被认为是“磁”能。
If one calculatesthe resistance in Figure 17-D compared to that of Figure 17-C, one finds theresistance of 17-D to be approximately 30,000 times the resistance of 17-C.Note that this fact coincides with my previous statement that the conductingcoil 17-D contains 30,000 times more atoms than conducting coil 17-C.
如果我们计算对比图17-D和17-C的电阻,会发现17-D的电阻大约是17-C的30000倍。注意,这个事实和我陈述一致,线圈17-D比17-C多30000倍原子。
However, to greatlyincrease the desired results, return to tests 15-A and 15-B. You will find inthose tests that the resistance in 15-B is equal to that of 15-A, but withinthe coils of these two tests the number of atoms in each vary greatly . Thisdifference is due to the fact that conducting coil 15-B has a phenomenal110,704,968 times more atoms than conducting coil 15-A.
然而,为了增大预期的结果,回到实验15-A和15-B。你将发现这些实验中15-B中的电阻和15-A相等,但这两个实验的线圈的原子相差很多。这种不同是由于导体线圈15-B比导体线圈15-A多110,704,968倍原子。
"...for a givencurrent input ... the most efficient conducting system design is one in whichthe greatest number of atoms within a coil are aligned by the given current(gyroscopic particle) input."
对于给定的电流输入最有效的传导系统设计是线圈中最多数量的原子被输入电流(陀螺子)激发排列。
18.   At this point , it should be clear that for agiven current input (consisting of gyroscopic particles) from a battery,generator, etc., the most efficient conducting system design is one in whichthe greatest number of atoms within a coil are aligned by the given current(gyroscopic particle) input.
18. 这点上很清楚,对于一个来自电池、发电机等的给定输入电流(由陀螺子组成),最有效的传导系统设计是线圈中最多数量的原子被输入电流(陀螺子)排列。
It is thereforeobvious that a properly designed , super-conducting system would produce evengreater results . As of this writing, work is being performed by otherscientists in an attempt to develop a super-conducting material which canoperate at temperatures higher than those previously developed.
因此,显然一个恰当的设计,超导系统将产生更好的结果。在本书所写的时候,研制可以在比之前开发的超导材料更高温中工作的材料,正在被别的科学家进行中。

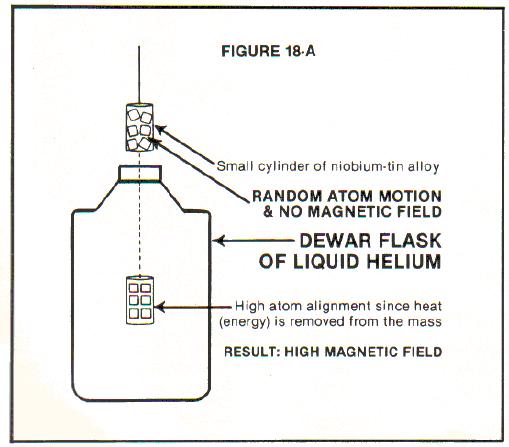

A. Let us examinesuper-conducting magnets in view of what I teach . In Figure 18-A, when asmall, fist- sized cylinder of niobium-tin alloy is placed in a flask of liquidhelium having little or no current input, the cylinder becomes a formidablemagnet of 24,000 gauss. Additional materials have been developed that arecapable of producing superior results.
A.让我们用我所教的内容观察一下超导磁体。在图18-A,当一个小的,拳头大小的铌-锡合金圆柱放入一个通有少量电流或没电流的液氦瓶中,圆柱体变成有24000高斯的强磁体。而且可以产生更强的效果材料已经被开发出来了。


What is significantin Figure 18-A is the fact that when the small cylinder of niobium -tin alloyis removed from the liquid helium, the alloy instantly loses its formidable,magnetic field .

在图18-A重要的是当从液氦瓶中移出铌-锡合金圆柱时强大的磁场会很快失去

The reader shouldquickly recognize that in test 18-A, the niobium -tin alloy initially possessedenergy (heat) which was removed from its mass when placed in liquid helium .This heat loss instantly results in a large reduction of the random atom motionwithin the alloy and therefore a high percentage of the alloy's atoms thenalign to release some of their electromagnetic energy (gyroscopic particles)throughout the formidable, magnetic field created .

读者应该马上认识到,在实验18-A中铌-锡合金圆柱拥有的最初能量(热)在放入液氦时从物质中移出了。热量的瞬间消失大量的减少了圆柱内原子的无序运动,因此圆柱很大一部分原子排列释放一些它们的电磁场能量(陀螺子),创建一个强大的磁场区域。
注:热散失,原子自由运动减少,原子排列,磁场出现

You can easily seethat this cryogenic process is opposite to the Curie temperature effect of heatinput (energy) into a permanent magnet resulting in atom unalignment , i.e.,increased random atom motion, and virtual disappearance of the magnet 's field.(See Figure 12-D2 on page 9 for comparison .)

你可以很容易看到这个低温进程相反的现象-居里温度的影响,热量(能量)进入永磁体导致原子失序,增加原子自由运动,磁场消失不见。(看第9页图12-D2的比较)
注:这里的相反,是热量的传导顺序相反。一个是热量流出,一个是热量流入。

If the small,cylindrical, niobium -tin alloy is removed from the liquid helium, then heat(energy) travels into its mass from the environment which results in asignificant increase in the random motion of the atoms within its mass. Thisaction creates the disappearance of the magnet's prior magnetic field since thegyroscopic particles which previously composed the magnetic field have nowreturned into the original atoms from which they came. [These results scientificallymatch those of test 12-D above.]

如果铌-锡合金小圆柱从液氦里取出,热量(能量)会从环境进入到其中的物质里,导致其中原子自由运动的增加。这导致磁场的消失,组成磁场的陀螺子返回到释放它们的原子中。[这些结果科学的匹配上面12-D实验。]

"... I stressthat it is essential that one design and establish the correct geometricconfiguration."

我强调,设计和建立正确的几何构型是必要的。”

19. For optimalresults, I stress that it is essential that one design and establish thecorrect geometric configuration!  Withsuch a correct configuration , the atoms of the substances involved willintersect the gyroscopic particles (composing the magnetic field of the system)at the proper angle. In some designs it may be desirable that those atomswithin the system do not (or minimally) intersect the gyroscopic particles,i.e., in such instances, only gyroscopic particles should mechanically interactwith one another.

19.为了最优的结果,我强调设计和建立正确的几何构型是必要的!有了正确的构型,复杂物质的原子将以恰当的角度横穿陀螺子(组成系统的磁场区域)。在一些设计中,构成系统的原子不与陀螺子交互设计是可取的,例如:举例,仅仅陀螺子相互的作用“

"One must paystrict attention to the mechanical essence of the gyroscopic action of theseparticles ...''

“我们必需严格注意这些粒子陀螺运动的本质

One must pay strictattention to the mechanical essence of the gyroscopic action of these particlesmoving in a magnetic field and emanating from the atoms of the substancesinvolved in the process. Such gyroscopic particles are the mechanical essenceof the equation E = MC2 . (See Figure 19-A.)

我们必需严格注意这些粒子陀螺运动的本质,它们在磁场中运动,从影响的物质的原子发出。这样的陀螺子是等式E = MC2的力学本质。(看图19-A

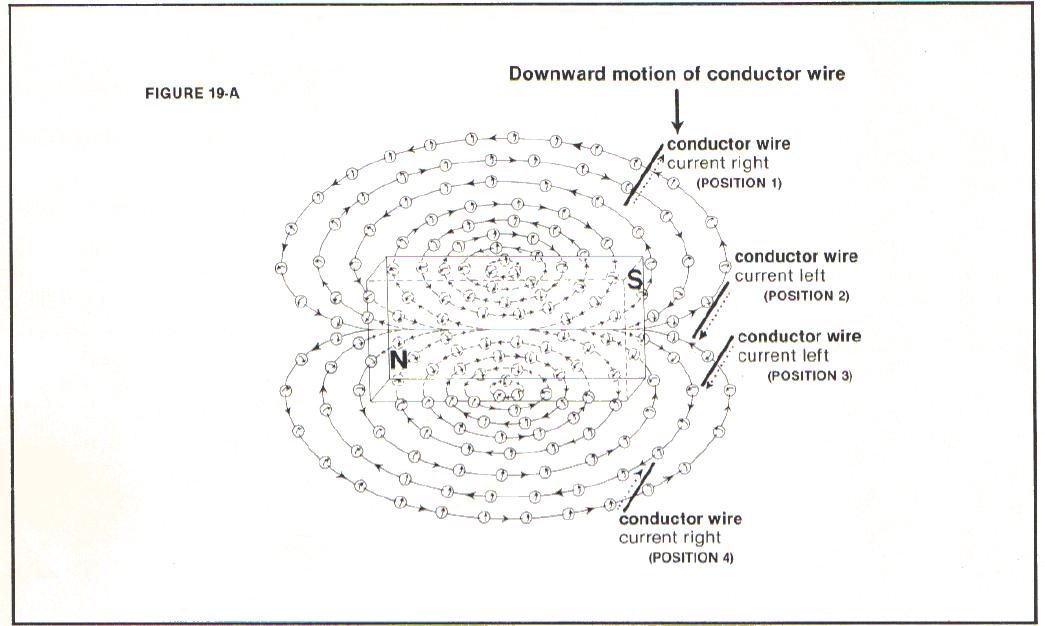

When a conductor isphysically moved down and across a magnetic field as in Figure 19-A , then thecurrent will change direction twice. The same is true if the conductor is movedfrom the South end of a magnet to the North end of the magnet. Reason: thedirection of gyroscopic action is changing throughout the "lines (shells)of force. " However, if a small, multi-looped, 38 -gaugeconducting-coil-wire [approximately 11/32-inch in diameter and 3/4-inch long]is moved across the end of a 6 inch diameter magnet, the current direction willalter four times. (See Figure 19-B.)

当一个导体向下穿过磁场区域如图19-A,电流将改变两次方向。如果导体从磁体南极移动到磁体北极也是一样的。原因:陀螺运动的方向在“力线(壳)”上改变了。然而,如果一个小的,绕了多圈的38 –gauge导体线圈(大约直径11/32英寸,长3/4英寸)穿过6英寸的柱状磁体,电流方向将改变4将。(看图19-B)
注:这里其实画的有点费解,导线仿佛是沿着磁力线平面移动。下面的图是线圈就好理解些。

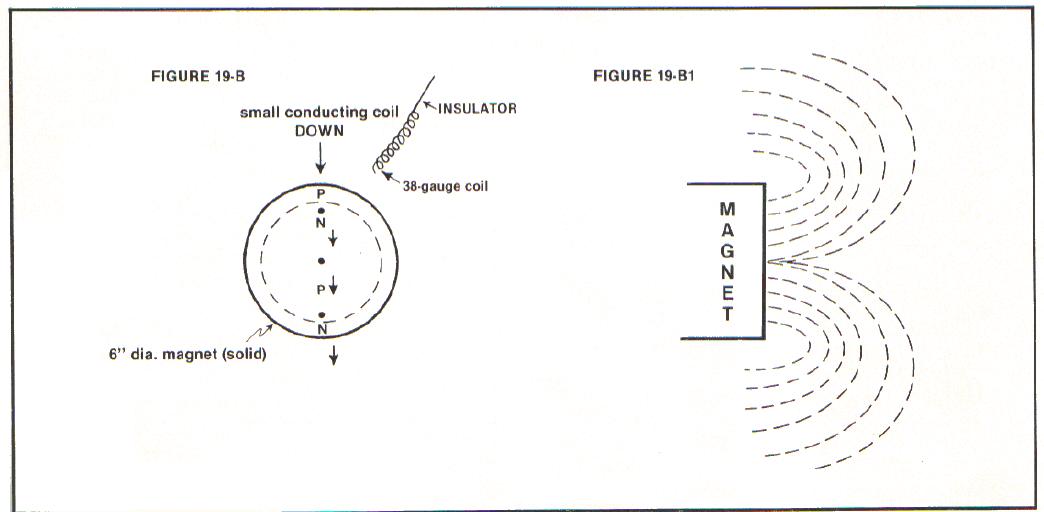

By moving the38-gauge, copper-wire coil across the end of the magnet (as shown in Figure19-B), the current direction will now change four times. [P = positive and N=negative.] It is extremely important to recognize that the "lines (shells)of force" (gyroscopic particles) continuously vary in their exact directionat any given moment. Study Figure 19-B1 above and observe that the angulardirection of the "lines (shells) of force" (gyroscopic particles)vary from the Center of the magnet to the left, in one plane of the magneticfield, and to the right, in the opposite side of that same plane .

通过移动38-gauge的铜线圈穿过磁体的尾部(如图19-B所示),电流方向将改变4次。[P正极,N负极。这对理解“力线(壳)”(陀螺子)在任何时刻方向的精确连续变化是非常重要的。学习上面图19-B1并观察“力线(壳)”从磁体中间到左边磁场,而同一平面的另一边是从中间到右边。(说的是磁力线的方向)

Also observe that atthe points marked with a dot(•) in Figure 19-B above, there is no currentproduced even though the moving, small coil is never parallel with the"lines (shells) of force." Reason : This occurs as a result of acancellation effect, i.e., one side of the small coil is located within oneplane of gyroscopic particles possessing a given angular direction, while theopposite side of the small coil will be located in another plane of gyroscopicparticles possessing a different angular direction. The identical effect willbe observed if the small coil is moved from the North to the South end of themagnet .

同样,观察上面图19-B用点标记的位置,即使在运动也没有电流产生,小线圈从来没有与“力线(壳)”平行。原因:这种结果是因为抵消效果,即,小线圈的一侧使陀螺子产生正向电流,另一侧产生反向电流。等同的效果是如果小线圈从磁体北极移动到南极尾部。

The reader shouldunderstand that I did not observe the above results by accident. On the contrary,I utilized the small diameter coil because 'expected that it would moreeffectively detect the varying angles of the gyroscopic particles involved. Theresults I obtained totally corroborated my expectations. It should now beobvious to you that relative to a magnetic field , the angular directions ofthe gyroscopic particles are of extreme importance with respect to asubstance's given geometric design.

读者应该明白,我不是偶然观察到的以上结果。相反的,我利用小直径线圈是因为期望更有效的检测被影响的陀螺子的角度变化。我得到的结果完全和我期望的一致。现在,明显的,和磁场相比,陀螺子的角方向对于物质的几何设计是极重要的。

I would anticipatethat computer technology - which is pictorally capable of depicting themechanical essence of the action/reaction, gyroscopic effect of energies -wouldbe very helpful in predicting more efficient designs and in computing usefulmathematical formulas.

我预见到,计算机科技-有能力描绘能量陀螺效应运动/反应的力学本质-将是非常有助于预测更有效的设计和运用有用的数学公式。

What should not bedone is for one to simply "throw together '' some design concept  and then place it in a magnetic field withoutgiving careful consideration to the mechanical essence of the energy of thatmagnetic field, i.e., the mechanical essence of the energy (in the form ofgyroscopic particles) comprising the atoms of the substance or substances ofthe design . Prior to my work, a lack of mechanical thought has been the norm,and, as the reader is well aware, the progress of science and the human racehas suffered.

不应该简单的将一些设计概念拼凑到一起之后放到磁场而不仔细考虑磁场能量的力学本质,例如原子的能量(陀螺子的形式)的本质。在我的工作之前,缺少这种机械力原理本质的很多标准,就像读者所知道的,现在的科学进程和人们每天面对的

I stress to you, thereader, that there are many designs which will effectively release the energyin a magnetic field in accordance with the conversion of the mass from whichthe magnetic field emanates via E = MC2.

强调一下,读者,有许多设计可以有效的释放磁场中的能量,遵循E = MC2将磁场释放的物质转换为能量。
注:作者的意思是告诉你原理,你可以有很多种不同的设计,而不是告诉你设计而不告诉你原理,你将无法复制和自己设计。

The electromagneticcomposition of the atoms of materials which initiates an input current flow isconstant, is similar to hydraulic pressure, and appears to move at the speed oflight. In addition, such input current behaves solely as a catalyst ininteracting with the electromagnetic nature of the atoms comprising other materialsand caused such atoms to release a portion of their electromagnetic energy inthe form of a magnetic field composed of gyroscopic particles. Such actionincreases the capacity of the system for performing "Obvious" or"Unobvious" Work, Force, or Power. The system can then react withanother magnetic force or the atoms (gyroscopic particles) of that source tomultiply this electromagnetic effect even further.

发出输入电流的物质中原子的电磁结构是连接的,和水压相似,以光速移动。另外,这样的输入电流的行为仅仅如催化剂与组成其它材料的原子的电磁性交互,引起这引起原子以磁场形式-由陀螺子组成-释放一部分它们的电磁能量。这种行为增加了系统输出“可见”或“不可见”功、力、能量的能力。之后系统能与其它磁场力或原子(陀螺子)交互,使电磁效应更长久。

Let 's examine thefacts which corroborate the previous statement:

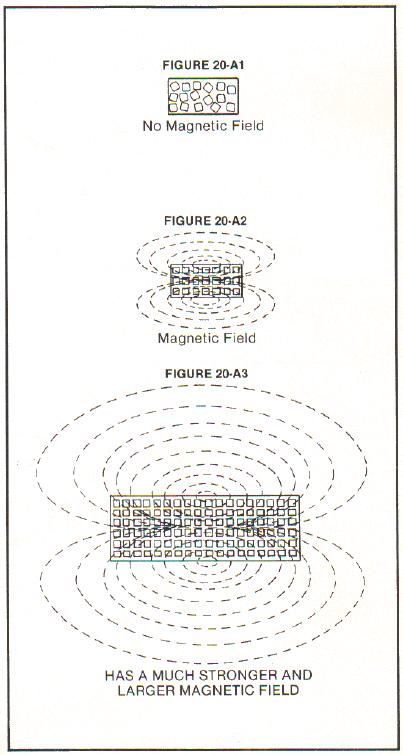

A.  I havealready proven that the greater the number of atoms aligned within a magnet,the greater the release of the magnet's energy (gyroscopic particles) inaccordance with the equation E = MC2 . (See Figures 20-A1, 20-A2, and 20-A3.)

让我们看哪些事实能证实上面的观点:
A.     我已经证明磁体中更多数量的原子排列会释放更多的磁能(陀螺子),遵循E = MC2。(看图20-A1, 20-A2, and20-A3)


B. I have alreadyproven that the more atoms aligned within a conductor, the greater will be therelease of the energy contained within that conductor (in the form ofgyroscopic particles) in accordance with the equation E = MC2. (See Figures20-B1, 20-B2, and 20-B3.)
B.我已经证明导体中更多的原子排列会释放导体中更多的能量(以陀螺子形式),遵循E = MC2。(遵循20-B1, 20-B2, and20-B3.)



C. I have alreadyproven that one should perceive the individual atoms (of Figures 20-A3 and20-B3) as microscopic batteries with an energy capacity equivalent to E = MC2 .Realizing these facts, one then knows that the greater the number of atoms ofany substance which one activates in accordance with these teach ings, then thegreater the energy release that can be expected. (See Figures 20-A3 and 20-B3.)

C.我已经证明,人们应该意识到单个的原子(图20-A3 和20-B3)是一个小电池,带有能量遵循E = MC2。了解这些事实,之后人们知道更多用这些方法激发的物质原子会释放比预期更多的能量。(看图20-A3 和 20-B3)

Refer back to Figure15-B (on page 19) and imagine that Figure 20-B3 is of similar magnitude. Also,imagine Figure 20-A3 of proportional size and magnitude with Figure 20-B3. Ifthese two systems (20-A3 and 20-B3) then react with one another, you willobtain the following: (See Figures 20-C1 and 20-C2.)

回到图15-B(在19页),想像图20-B3有相同的级数。同样的,想像图20-A3与20-B3有成比例的大小和级数。如果两个系统(20-A3与20-B3)相互作用,你将得到下面结果:(看图20-C1 和 20-C2)

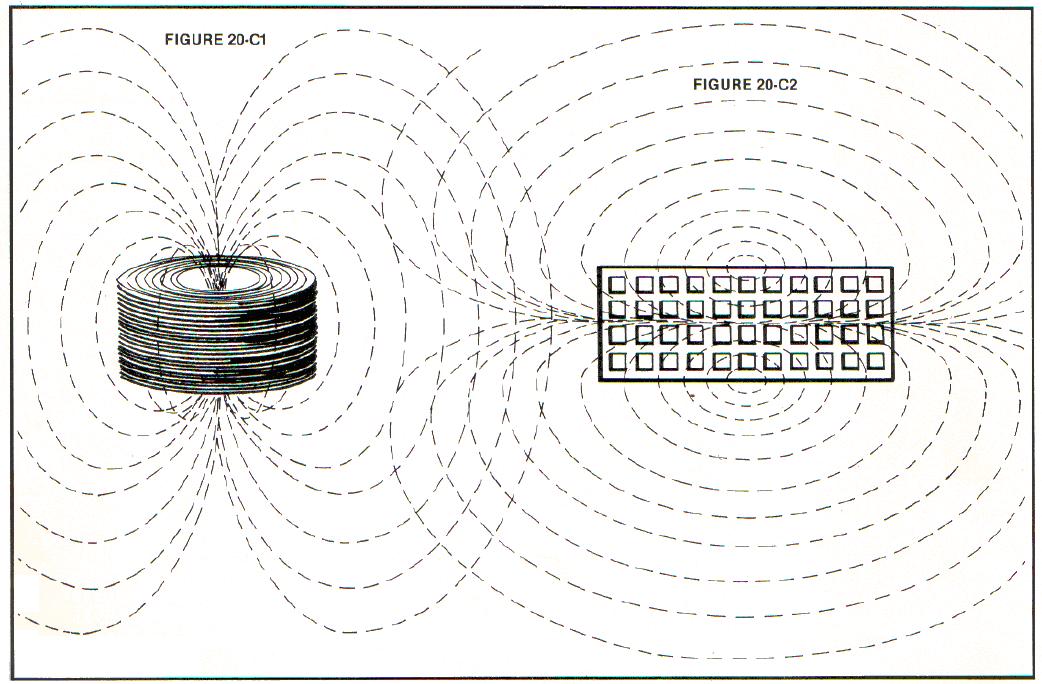

One can easilyenvision a conductor coil 20-C 1 being the size of a domed stadium, and amagnet 20-C2 being larger than a giant redwood tree.

很容易想像一个导体线圈20-C 1变成运动场大小,一个磁体20-C2比巨杉还要大。

In some cases, itmay be desirable to permit the gyroscopic particles emanating from magnet 20-C2to efficiently interact with the gyroscopic particles surrounding theconducting coil 20-C1, but not to interact with the atoms contained within theconducting coil 20-C1 itself. With the proper mechanical configurationutilizing the gyroscopic particles, one would achieve maximum torque withmagnet 20-C2 without creating back - emf or induction into conducting coil 20-C1.

在一些案例中,也许允许磁体20-C2发出陀螺子与导体线圈20-C1周围的陀螺子高效交互,但不与导体线圈20-C1包含的原子交互。用恰当的机械配制使用陀螺子,将得到最大扭转力,通过磁体20-C2,也不用产生反向电动势和自感应输入到导体线圈20-C1

The reader must alsorealize that there is a hydraulic, "magnetic -coupling effect " ofthe gyroscopic particles comprising the magnetic fields -an effect whichextends back to the atoms of the material from which the gyroscopic particlesemanate. As a result, the Archimedian "Laws of Leverage" are enacted!

读者必须意识到;由陀螺子从材料的原子中释放再返回到原子的另一端形成了磁场,来自磁场的陀螺子有一个类似水压的“磁耦合”效应

Knowing these facts,one can easily see that in Figures 20-C1 and 20-C2 there would be a phenomenaltorque produced upon the masses of both 20-Cl and 20-C2. This phenomenal torqueis the result of E = MC2!

知道这些事实,可以清楚的看到图20-C1 和20-C2都会产生将产生扭转力的现象。这个扭转力现象是E = MC2的结果!

D. EXAMINE THESEFACTS: The massive number of atoms within conducting coil 20-C1 produce aphenomenal back-emf (power) which is greater than the external energy input(consisting of a catalytic effect only) or external power input. In addition,the massive number of atoms within magnet 20-C2 release via atom alignment alarge quantity of kinetic energy (in the form of a magnetic field) whichinteracts with another large quantity of kinetic energy (in the form of amagnetic field) within conducting coil 20-C1. Such interactions result in aphenomenal torque effect and either 20-C1 or 20-C2 (or both) could  rotate .

D. 检验这些事实:导体线圈20-C1中大量的原子产生的反向电动势(功率)大于外部输入的能量(只产生催化剂效果)。另外,磁体20-C2里大量的排列原子释放大量的动能(以磁场的形式)与导体线圈20-C1产生的大量动能(以磁场的形式)相互作用。这种交互导致扭转力的产生,20-C1 20-C2(或两者)能旋转。

"The greaterthe voltage (hydraulic pressure), then the greater the number of atoms of aconductor will be triggered into the desired action. "

“更高的电压(水压),导体中会有更多的原子被激发产生期望的运动。”

Observe that theabove mechanical configuration has multiplied the capacity of the system toperform "Obvious" or "Unobvious " Work, Force, or Powerrelative to the intial power input which acts only as a catalyst.

观察上面的机械布置,已经增加了系统产生“可见”或“不可见”功、力、功率的能力,相对于初始的仅起催化剂作用的输入功率。

Now, envisionanother conducting coil of proportional size which acts as a generator and isphysically positioned to efficiently interact mechanically with 20-Cl and20-C2. This configuration will increase the energy output even further.

现在,想像等比例的导体线圈作为发电机,放到与20-C1 和20-C2交互最高效的位置。这种配制将增加更多的能量输出。

Such a configurationis exactly what I created with my primitive , handmade prototype. The prototypewas not built for my benefit, but for the benefit of others who had beenunjustly influenced by a teaching process which rewards memorization. It wasalso built for those who could not or would not recognize the validity of myTheoretical Process. (Again I refer to the discussion in 15-C and Figure 15-Cl.) All of the results described above were observed in the primitive prototype(described in 15-C and 15-Cl) except that the generating coil had only 300 lbs.of atoms. For more impressive results , the prototype should have contained4,200 lbs. of atoms. I specifically limited the coil weight to 300 lbs.,however, because I knew that high voltage would occur and that electrical-resistance-breakdown could also happen if the coil size became too great. These problemsare technical problems which can easily be solved by present technology .

这样的构造恰恰是我创建的原始、粗糙的原型机。原型的建造不是为了我的利益,而是为了被死记硬背的教学方式影响到的人们。同样为不能认识到我的理论正确性的人们。(我指的是15-C和 15-C1中的讨论)以上的讨论结果都是在原始的原型(15-C和 15-C1中的讨论)中可见的,除了只有300磅原子的发电线圈。为了更多深入的结果,原型应该有4200磅原子。然而,我特定限制线圈重量为300磅,因为我知道如果线圈尺寸太大将产生高电压并烧断电路。这些问题只是技术问题,现在的科技可以轻松解决。

The reader shouldclearly understand by now that if the electric current which is initiallyreleased from a battery is not permitted (by a conducting coil) to complete thecircuit within the coil itself , then the total electromagnetic energy(gyroscopic particles) contained within the conducting coll will performexactly as I teach. Ideally, one should construct the energy machine to havevoltage (hydraulic pressure), but the input cur rent should (as much aspractical) be prevented from returning to the battery, generator, etc. Thatcurrent which flows from the conducting coil could indeed return to the batteryand recharge it.

现在读者应该清楚的明白,如果电流是从电池释放是不允许(因为导体线圈)完成线圈的电路循环的,所有的导体线圈中的电磁场能量(陀螺子)将如我所说的那样工作。完美的方式是构建有电压(水压)的能源机,但输入电流应该(根据实际)不能返回电池、发电机等。流过导体线圈的电流最终回到到电池给电池充电。

E. One could reducethe length of a conductor and still achieve the desired results by simplyincreasing the speed of the "on" and "off' input current whichbehaves as a pulsating flow. The atoms of the conductor will produce a back-emfflow as a result of the expanding and collapsing magnetic field (composed ofgyroscopic particles). These atoms are "triggered '' into this observable,back -emf flow via the "catalytic" action of the small, initial inputcurrent.

E.可以通过增加输入电流“开”“关”的速度象脉冲一样(注:直流脉冲的频率)来减少导线的长度并得到期望的结果。导线的原子将产生反向电动势,这是磁场(由陀螺子组成)创建和摧毁的结果。通过原始小输入电流的“催化”行为,这些原子被“激发”产生明显的反向电动势。

The greater thevoltage (hydraulic pressure), then the greater the number of atoms of aconductor which will be triggered into the desired action.

更大的电压(水压)会导致导体中更多原子被激发到期望的状态。

However, thisstatement should be qualified: the facts indicate that all atoms have a"threshold effect." If the "threshold effect" of the atoms(contained within a given diameter and length of a conductor) are exceeded,then the atoms will emit some of their electromagnetic composition (gyroscopicparticles) in the form of heat with the result that the magnetic field would begreatly reduced. If this occurs, then one should simply increase the diameterof the conductor or increase the speed of the pulsating input current.

然而,下面的陈述应该是被证实的:事实指出,所有的原子有一个“阈效应”。如果原子(给定直径和长度的导体中)的“阈效应”值达到,原子将以热能的形式发出它们电磁组成(陀螺子)的一部分,这导致磁场将减少很多。如果这发生了,应该简单增加导线的直径或增加脉冲输入电流的频率。

Returning ,to theprototype in Figure 15-C1: this massive 5-gauge coil had only eight (8) ohms ofresistance , yet it produced a tremendous back-emf (power) which reducedcurrent-flow-input from the battery pack. When the input power from the batterypack was interrupted , the back -emf then returned more power than the originalpower input from the battery pack.

回到图15-C1的原型:这个很重的5-gauge的线圈只有8欧的电阻,然而它产生了极大的反向电动势(功率),这减少了电池组电流的流入。当从电池组的输入功率被完全阻止,反向电动势会返回比从电池组原始输入能量更多的能量。

There are thoseindividuals who will ask the question: "Why can't one simply feed thegenerated, output current back into itself, eliminating the need for an inputbattery? " The answer is simple: The energy involved in this system(consisting of gyroscopic particles) is composed of real, mechanical entitieswhich will work against themselves (as would unaligned gears) just as readilyas they will work together in utilizing or generating power. (See Figure 21-A.)

有些人会问这样的问题:“为什么不能简单的将输出的能量返回到发电机本身作为输入,去掉输入电池的需要?”回答是简单的:参与系统的能量(由陀螺子组成)是由真实的力学实体组成,它们将排斥本身(如无序的齿轮)就如它们一起工作利用或产生能量时一样。(看图21-A
注:bedini的系统和这个很像,这里的思考看来,陀螺子的旋转和前进是不能输入到从电池出来的位置的,因为这将导致陀螺子互相作用,而不能输入或影响输出。

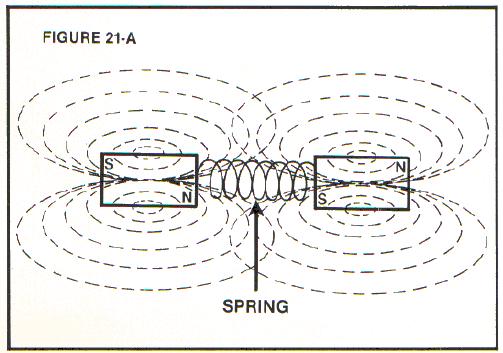

A.    Envision that the above two magnets inFigure 21-A have a strong, magnetic field that is capable of compressing thespring. One would not expect the spring to then recoil and push the two magnetsapart.

A. 想像以上图21-A两个磁体有很强的磁场区域,能压缩弹簧。没有人会期望弹簧会反推两个磁体分开。

Reason: Thegyroscopic particles emanating from the atoms of the two magnets are themechanical essence of E = MC2 and, consequently, such particles will keep thespring compressed. However, if one has a "triggering mechanism " or acatalytic effect that causes the atoms of one or both of the two magnets toalign and unalign, then the spring would recoil, pushing the two masses apart.When the atoms are aligned, the spring would again be compressed via thegeneration of the magnetic field by the aligned atoms. This process wouldcontinue to repeat itself.

原因:两个磁体中的原子发出的陀螺子力学本质是E = MC2,因此,这样的陀螺子将保持弹簧的压缩。然而,如果一个有“开关设备”或催化效果,能引起两个磁体中的原子排列和失序,那么弹簧将可以弹开并推开两个磁体。当原子排序,通过原子排列磁场区域的产生弹簧将再次压缩。这个过程将重复下去

B.    A similar effect (created by the gyroscopicparticles via E = MC2) is observed when the current is prohibited fromreturning to a conventional generator. If a mechanical means is constructed to"trap" the electric current and prevent it from completing a circuit,then the gyroscopic particles of the current have a capacity for continuouswork without the necessity to increase the power input from the generatorsystem. However , if the circuit is complete and the electric current movingwithin the System performs no "Obvious" Work, Force, or Power, thenthe gyroscopic particles comprising the current will - upon returning to thegenerator -increase the need for greater power input into the system. Reason:Such action occurs as a result of the very fact that these gyroscopic particlesare literally the "mechanical essence of E = MC2" and it appears theycannot be destroyed. This fact results in these gyroscopic particles having a"cumulative effect." (See Figure 21-B1 and Figure 21-B2.)

B. 一个相似的效果(遵守E = MC2由陀螺子创建)是电流禁止返回传统的发电机。如果创建一种机械构造“困住”电流,阻止它完成电路循环,那么电流的陀螺子有能力继续工作,不需要增加输入发电机的功率。然而,如果电路循环完成,电流的移动在系统中没有产生“可见”的功、力、功率,那么组成电流的陀螺子将-返回,发电机-需要更多功率输入系统。原因:这样的活动的发生是一个事实的结果,陀螺子是真实的“E = MC2的力学本质”一旦产生就不可毁灭。这个事实导致陀螺子有“累积效应”。(看图21-B1 和21-B2)
注:意思是让陀螺子产生后要让它做功等,如果没做功回到原来的位置了,就消失了,就需要新的功率输入了。

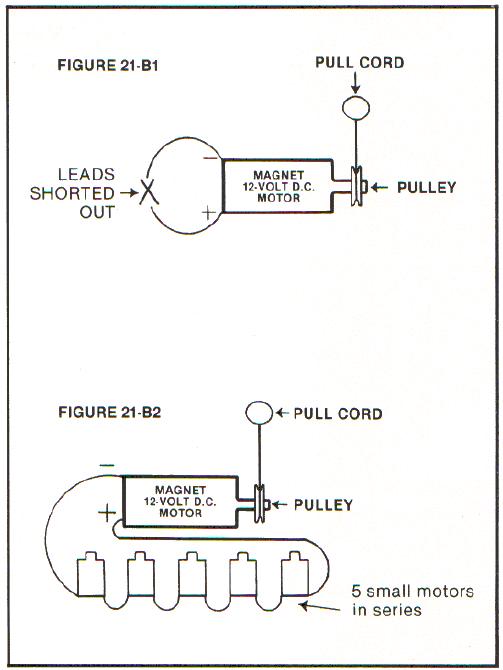

InFigures 21-B1 and 21-B2, the depicted motor also acts as a generator. In 21-B1,if the leads are shorted out with only  1ohm of resistance in the generator's conductor, there will be a resistive forceequal to the pull -force that one exerts in pulling the pull-cord attached tothe pulley on the motor (generator) shaft. Reason: The conductor cuts themagnetic field of the permanent magnets, thereby releasing gyroscopic particles(current) from the magnetic field. These released, gyroscopic particles whichtravel into the conductor then have their spin at right angles to the balanceof gyroscopic particles (spin) remaining in the magnetic field which in turngenerates an opposing ''Obvious Force. '' These gyroscopic particles continueto move throughout the shorted conductor as the conductor continually movesthrough additional "lines (shells) of force" within the magneticfield which, in turn, results in even more gyroscopic particles (current) beingreleased within the conductor. This successive number of gyroscopic -particle -releases is what creates the ''cumulative effect. ''

在图21-B1和21-B2中,描绘的电动机也可以来做发电机。在21-B1中,如果两极是短路的,电机导线只有1欧电阻,如果一个人用力拉发动机(发电机)轴上的轮缠的线,将有一个阻力和拉力相等。原因:导线切割永磁体的磁场区域,因此从磁场区域释放陀螺子(电流)。这些释放的陀螺子将进入导线,使它们在直角方向旋转来平衡磁场区域中的陀螺子,给发电机一个相反的“可见力”。这些陀螺子持续穿过短路的导线,导线持续穿过磁场中额外的“力线(壳)”,依次导致更多的陀螺子(电流)从导体中释放。连续的陀螺子释放创造了‘累积效应’。

"This successive number of gyroscopic- particle-releases iswhat creates the 'cumulative effect. '"

“连续的陀螺子释放创造了‘累积效应’。”
注:这里插一句《磁流》里面的话,如果你给磁一个环路,那么它将永远的运动下去;当时没有细想过这句话,如果用在这里,换成,如果磁在做功将永远存在环路里。就变成了这个累积效应。也或许这种理解不对。
这背后或许还有更多值得思考的地方。

Onecan easily prove this previous statement to be a fact by simply conducting anexperiment. Observe that the harder one pulls on the "pull-cord" (inFigure 21-B1), the more the resistive force will equal your pull. [Frictionalforce is additional.]One can therefore easily observe that one is producing no''Obvious Work, Force, or Power “outside the system.

通过做一个简单的实验,可以容易的证明之前的陈述是实事。观察到,越用力拉“拉绳”(图21-B1),越大的阻力将等于你的拉力。【摩擦力是除外。】因此很容易观察到系统外没有产生“可见功,力,动力”。

Observeabove Figure 21-B in which five smaller, permanent -magnet motors have beenplaced in series. When one pulls the pull-cord, one finds that the requiredenergy is significantly less than in Figure 21-B1 and yet all five additionalmotors will now be running. One is now producing '' Obvious Work, Force, andPower" outside of the system and yet one is using significantly less inputpower. Why the difference? Answer: In Figure 21-B1, one is producing highcurrent (volume of gyroscopic particles which acts as a "brake") andvirtually no hydraulic pressure (voltage). However, in Figure 21-B2, one isproducing high hydraulic pressure (voltage) and low current (volume ofgyroscopic particles completing the circuit), therefore, the "brakingeffect" is drastically reduced.

观察图21-B,五个更小的永磁体电动机串连在一起。当一个拉拉绳时,将会发现需要的能量明显小于图21-B1,然而五个其它发动机将运行。拉力在系统外产生了“可见功、力、动力”,然而拉力用了更少的输入。为什么会有这种区别?回答:在图21-B1,拉力产生了高电流(陀螺子的体积起“制动器”作用),几乎没有水压(电压)。然而,图21-B2,拉力产生了高水压(电压)低电流(完成回路的陀螺子的体积),因此,“制动效果”大大减少了。

Lenz'sLaw states that "the current induced in a circuit due to a change in themagnetic flux through it or to its motion in a magnetic field is so directed asto oppose the change in flux or to exert a mechanical force opposing themotion.”

注:楞次定律:线圈内感应的电流,基于通过它的磁通变化或磁场内运动所产生的,是那样直接的去反向改变磁通的变化,或者产生一个机械力去阻止运动。

Lenz'sLaw is simply an observation of this cumulative effect of the gyroscopic-particle-spin (comprising the current produced) being at right angles to thespin of the gyroscopic particles remaining in the magnetic field.  Prior to my work, the true nature of themagnetic field has never been fully understood.

楞次定律是(组成产生的电流的)陀螺子在直角方向上与在磁场中的旋转陀螺子 回旋 累积效应的简单观察在我的工作之前,磁场本质从来没有被完全的理解。

Returningto the question , "Why can 't one simply feed the generated, outputcurrent back into itself?" l would answer: If one blindly (via mechanicalimplicitness) feeds the current produced from a system back into itself , thena "braking effect" will occur which will negate the desired results.

加到问题,“为什么不能简单的将输出电流返回发电机本身?”我将回答:如果盲目的(通过机械方式)用返回产生的电流到自身,那么将会发生“制动效果”,将降低预想的结果。

Itshould be obvious to the reader that the prior teachings have indicated thatall power produced from any type of conducting system was the result of currentflow and was not from the conducting system itself. As a result of this view,all prior systems have been deliberately designed to utilize high current-flowto produce high power.

对读者来说明显的是传统的教学已经指明,任何类型传导系统产生的所有动力是电流的结果,不是导体系统本身。作为这种观点的结果,所有传统的系统已经被故意设计成利用高电流产生高功率。

Ifyou have mastered my teachings up to this point, then you should be principallyinterested in the voltage (hydraulic pressure), since the current (gyroscopicparticles) simply acts as a catalyst for any system into which it flows. As Iindicated above, the gyroscopic particle composition of the current cannot bedepleted as it moves through the system. As a result, the current completes thecircuit to the generator and a "braking-action” occurs to create thecumulative effect. If the current was to complete the circuit and return to thebattery, then such current would, according to Faraday's Law of Electrolysis(which depends upon current flow (gyroscopic particles]), produce an undesiredchemical action and destroy one's ability to utilize the elements of thebattery in accordance with E = MC2 .

如果你已经精通我在这点上的教学,你将主要对电压感兴趣(水压),因为电流(陀螺子)对任何流入的系统只起简单催化剂作用。如我上面指出的,组成电流的陀螺子当穿过系统时不能被耗尽。然而,当电流完成了电路循环返回发电机,将产生“制动效果”创建累积效果。如果电流完成电路循环返回电池,这样的电流将,根据法拉第电解定律(依靠电流流过[陀螺子),产生一个不期望的化学反应并摧毁电池根据E = MC2输出能量的能力。

Thevery electrolytic action described by Faraday's Law is proof that the currentwithin the system has not been depleted. With a correct technical system, suchcurrent could be harnessed for more productive purposes since the gyroscopicparticles (which comprise the current) have an infinite capacity for work.

恰恰是法拉第定律描述的电解行为证明系统中的电流没被耗尽。在一个正确的技术系统,可以控制这种电流产生更多作用,因为陀螺子(组成电流)有无限做功的能力。

Viathe proper design, it is obvious that one can feed the energy triggered andreleased from a system into a configuration which then operates itself andproduces additional, excess energy in accordance with E = MC2 by converting themass of the system involved.

通过恰当的设计,很明显,可以通过输入能量来激发释放一个可以自己运行的并产生额外能量(按照E = MC2转换系统中的质量)的设备。

Thisis exactly what I have clearly demonstrated by utilizing the primitive,handmade prototypes already discussed. (See Figures 15-C1 and 15-C2.) There aremany additional, technical designs possible which will be built by following mybasic principles.

这就是我已经清楚的证明的上面已经讨论过的我的最初的、手工的原型机。(看图15-C1 15-C2)有许多另外的遵循我的基础原则的科学设计能被建造。

22.    I now wish to give you, the reader, a test.Have you understood literally what I have taught you? Or have you simply soughtto memorize what I have written?  I wishto stimulate you to understand the very "essence" of what I teachyou! Only by doing so will you be able to "stand on my shoulders and seefarther than I have.''*

我现在希望给你,读者,一个测试。你已经真正明白我所教授的了吗?或者你简单的想记住我所写的?我希望你明白我教授你的“本质”使你兴奋!只有这样,你才能“站在我的肩膀上比我看的更远。”

Question:How would you build a more efficient design than the primitive prototypes Ihave already demonstrated? What properties would you seek to perfect in yoursystem?

问题:你如何建造一个比我已经展示原始原型机更有效率的设计?你将寻找什么特性来完善你的系统?

Youshould understand that if built structurally strong, even the 15-C1 and 15-C2prototypes would produce an impressive power output if the hydraulic pressure(voltage) was increased. For example, in the smaller 15-C2 unit, I utilizedonly 300 volts of pressure due to the fact that as one increases the voltage(hydraulic pressure) then the power produced becomes damaging to the primitivecommutator which I built by hand. Utilizing these 300 volts, I had only 1.6milliamps input and a 14 lb. magnet which rotated at approximately 200 RPM.Now, if you add 100,000 volts (hydraulic pressure) to a system structurallydesigned to withstand the voltage -which is 333 times the original voltage Iutilized to demonstrate my correct principle-then one can expect the poweroutput to be in thousands of watts with an input of only several hundred watts.With such a system, the 14 lb. magnet would rotate at more than 50,000 RPM!

你将明白,如果建造够结实,如果水压(电压)增加甚至15-C1 和15-C2中的原型将产生可观的功率输出。例如,在15-C2的更小的装置中,我用只有300伏的电压导致增加电压(水压)产生的能量(因为这能量已经能毁坏我建造的原始换向器)。用300伏,我只用1.6毫安的输入,14磅的磁体以大约200转每分钟的速度旋转。现在,你加100000伏(水压)到一个被设计可以经受这么高电压的系统-这是333倍于我用于证明我的原则的电压-那么可以期望输出能量达到几千瓦,而只用几百瓦的输入。用这样的系统,14磅的磁体将有大于50000转每分钟的转速。

WhatI continually stress to you, the reader is that the handmade prototypes weresimply built to prove that the Technical Process which I teach is correct. Iconsider the Technical (Theoretical) Process to be 10,000 times more importantthan those primitive prototypes. If you have mastered what I teach, then themagnitude of this "ioneering Invention" should be obvious to you.

我持续强调,手工原型只是简单来证明我所教授的科技是正确的。我认为理论是10000倍重要于这些原型。如果你已经精通我所教授,那么这个重要的“先进发明”对你来说是平淡无奇的。
